395W High Efficiency LG NeON® R Solar Panel

60 Cells - 21.8% Efficiency

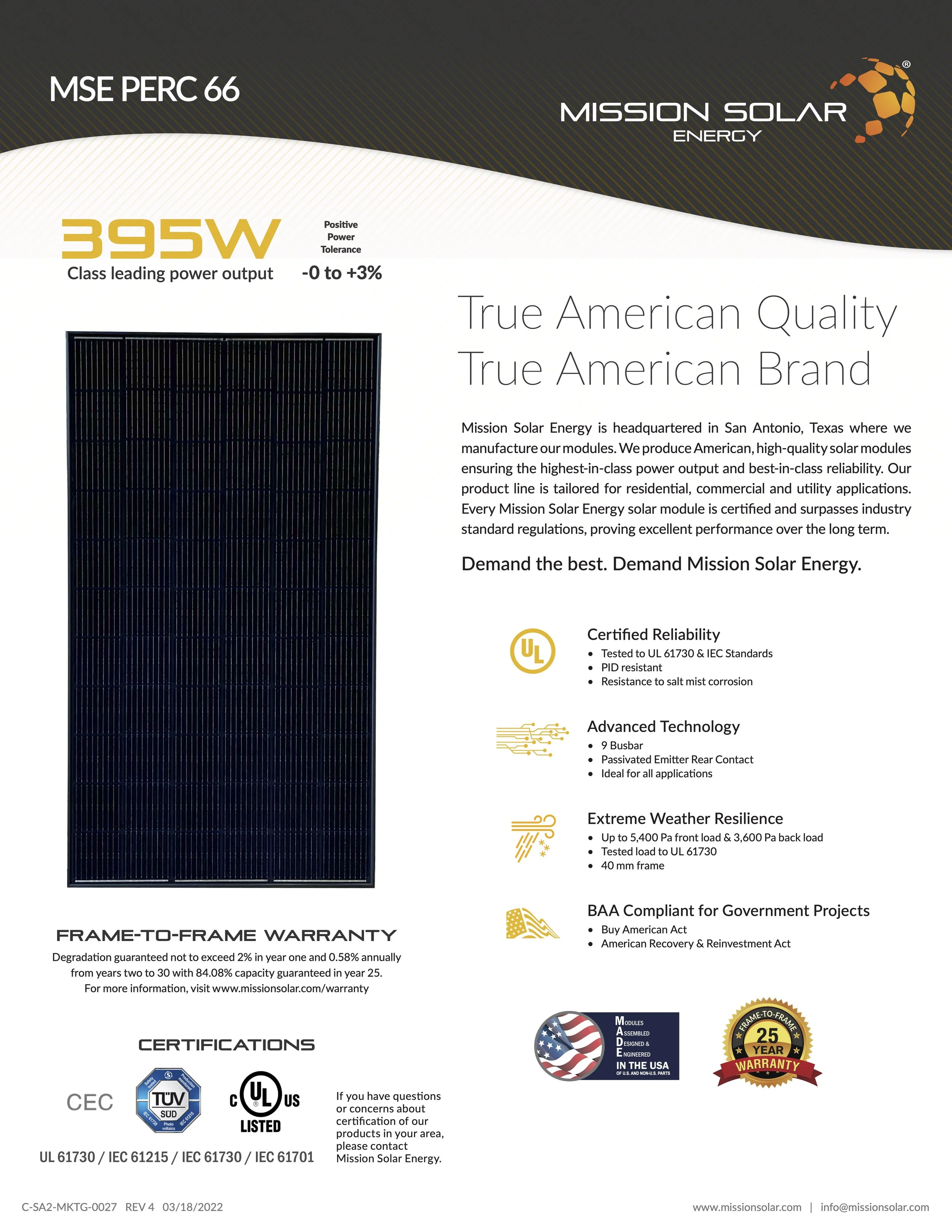

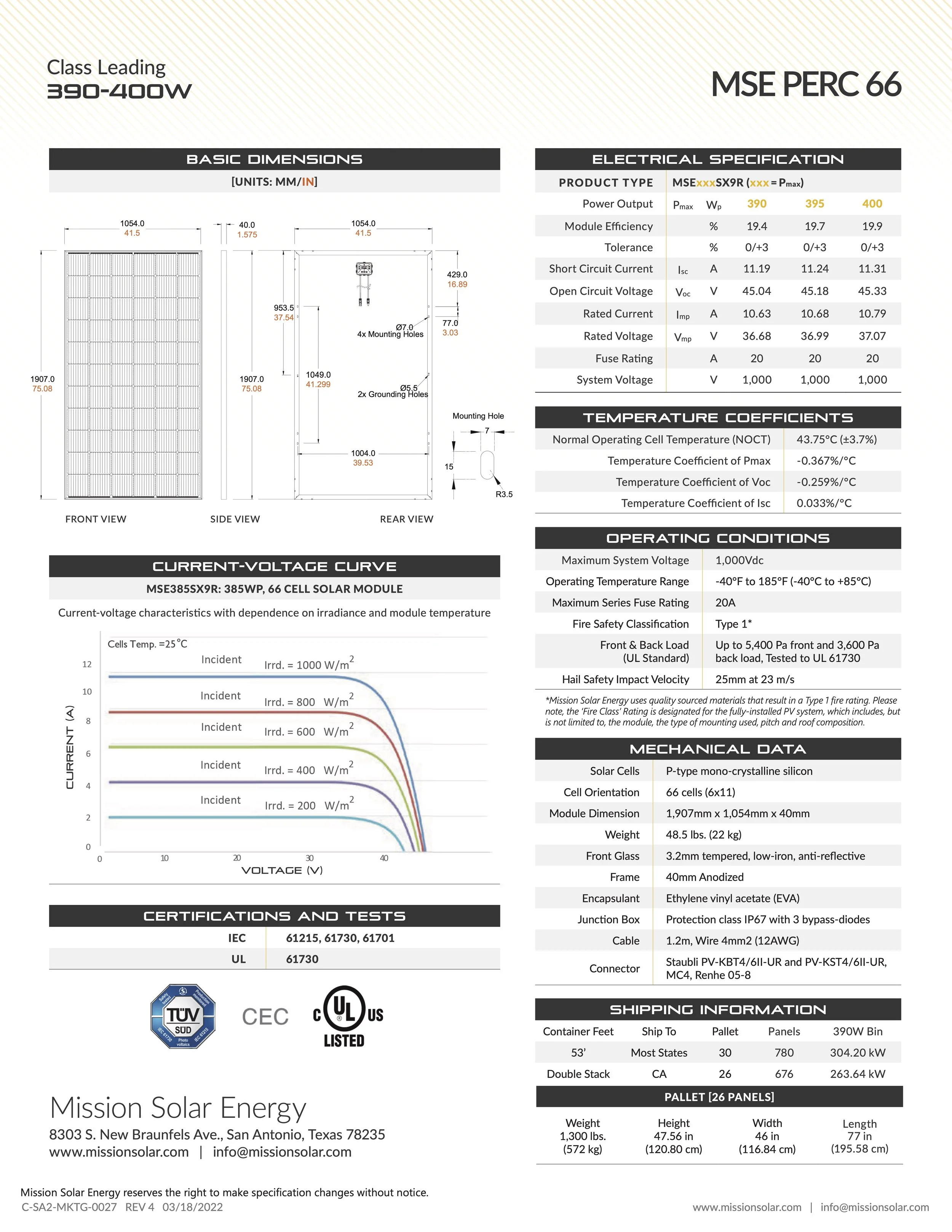

MSE395SX9R Spec Sheet

• MC-4 Connectors

• Voc: 45.18-V

• Vmp 36.99-V

• Isc: 11.24-A

• Imp: 10.68-A

• Nominal Operating Cell Temp: 43.75°C / +/- 3.7°C

• Operating Temp Range: -40°F - 185°C / -40°C - 85°C

• Weight: 22-kg / 48.5-lb

• Dimensions: 1907×1054x40 (mm) - 75.08 x 41.5 x 1.6 (inches)

• Maximum System Voltage 1000V IEC / 600V UL

• Maximum Series Fuse Rating: 20A
