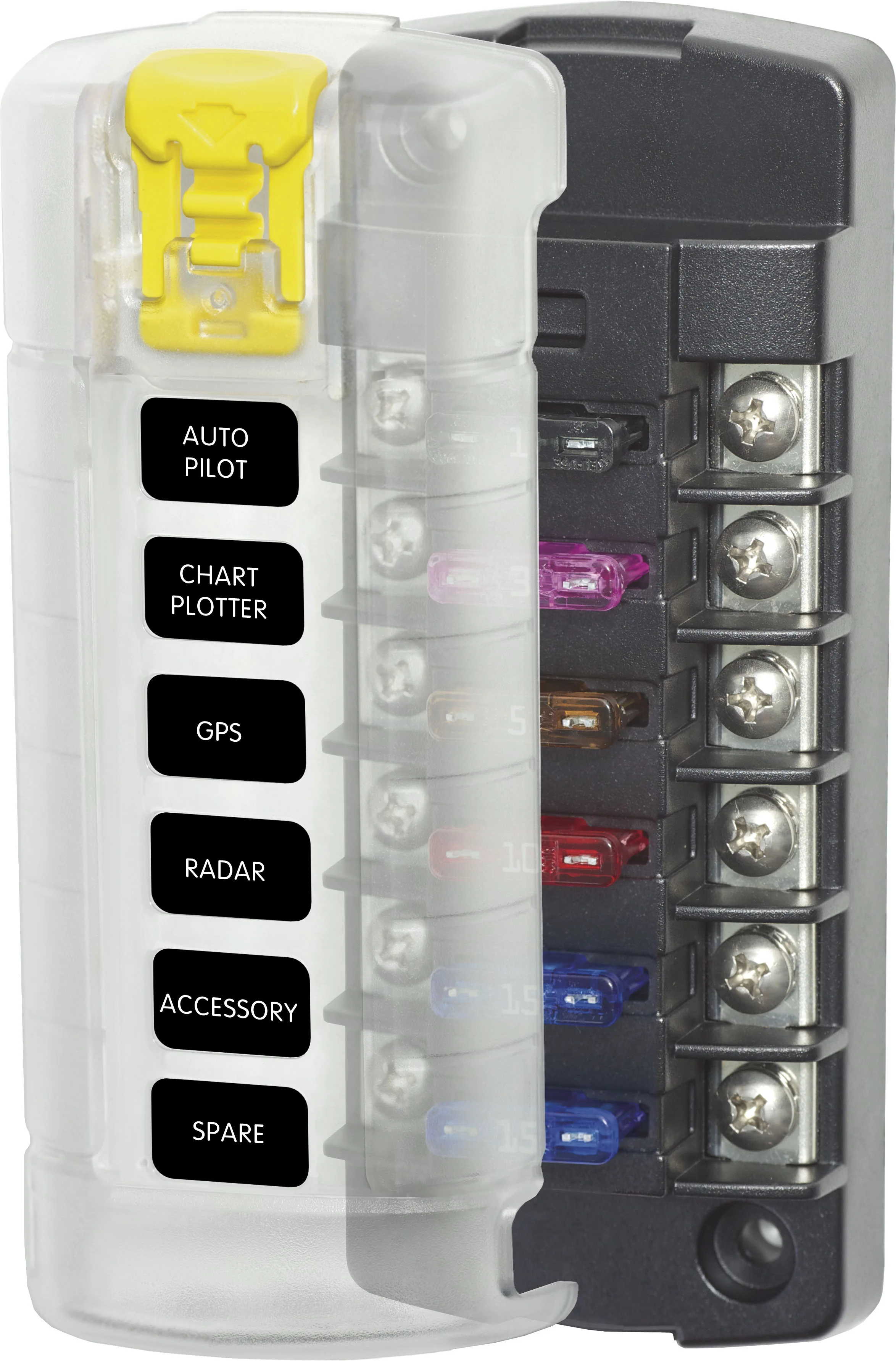

• Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system

• Clear insulating cover with label recesses accepts Small Format Labels

• Spare fuse holder in cover

• Accepts ring or snap fork type terminals

• Includes two terminal block jumpers

Circuits: 6

Maximum Amperage: 100A per block / 30A per circuit

Maximum Voltage: 32V DC

Mounting: #8 Screw (M4)

Screw Terminal Type: #8 - 32 Screws with captive star lock washer

Weight: 0.35

Dimension Drawing

Wiring Diagram
