Diagonal 3/8" Stainless Studs

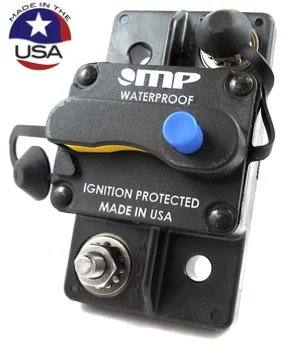

USA Made Thermal Circuit Breakers - Available in ratings from 50 to 200 Amps, the 17 Series offers a robust thermoplastic material case enclosure, designed with superior moisture sealing and built standard with STAINLESS STEEL - STUDS & SEMS NUTS.  The termination stud spacing has been designed to accept standard ring terminal configurations.

The MP 17 Series is designed as a drop in replacement for existing surface and panel mountable configurations along being the BEST Choice for New-Equipment Installations.

• MARINE GRADE - MADE IN THE USA

• MFG Part# 175-S2-***-2 (*** = amps)

• Amperage Ratings from 50 to 200 Amps

  • 48 VDC maximum for 50 - 150 Amp

  • 30 VDC maximum for 175 - 200 Amp

• Trip-free operation

• 3/8" Stainless Studs & Nuts (Diagonal Position)

• Switchable / Manual Push-To-Trip Operation

• IP67 - Dustproof and waterproof

• Visible trip indication

• Visible trip button / circuit break button

• Ignition Protected
