Solar Panels

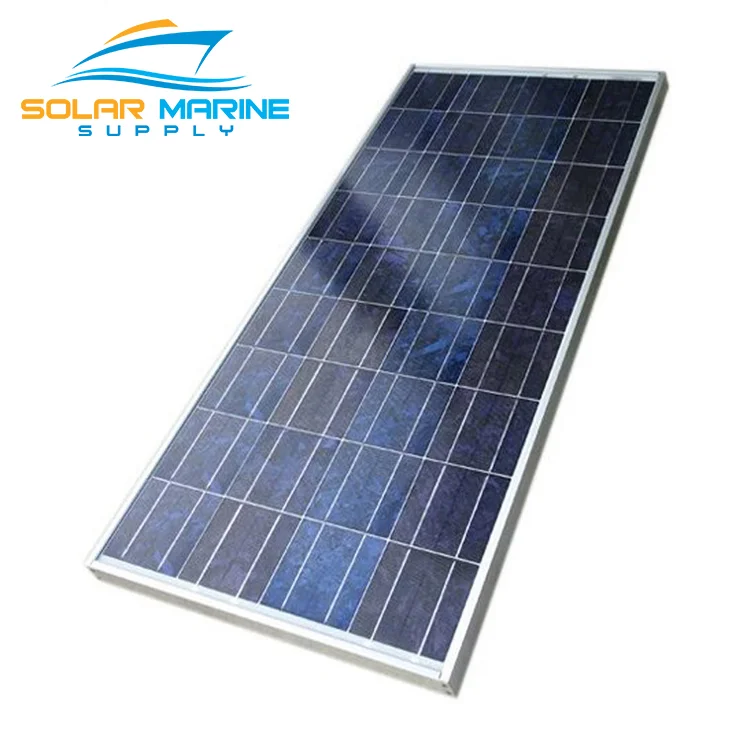

Trina 280W Solar Panel - POLY

235.00

Trina 280w Spec Sheet

TRINA 280w Specs:

  • Model: TSM-280 PA14
  • MC-4 Connectors
  • Rated Maximum Power - Pmax 280w
  • Output Tolerance: 0/+3%
  • Current at Pmax -- Imp 7.78A
  • Voltage at Pmax -- Vmp 36.01V
  • Short-Circuit Current -- Isc 8.45A
  • Open-Circuit Voltage -- Voc 44.44V
  • Nominal Operating Cell Temp: 45°C / ± 2°C
  • Weight: 27-kg / 60-lbs
  • Dimensions: 1956x992x50 (mm) - 77 x 39 x 1.96 (inches)
  • Maximum System Voltage - 600V
  • Maximum Series Fuse Rating: 15A
  • Cell Technology: Multi-Si



Quantity:
Add To Cart
240 generic.JPG
trina TSM-280PA14.JPG
