Magnum Energy

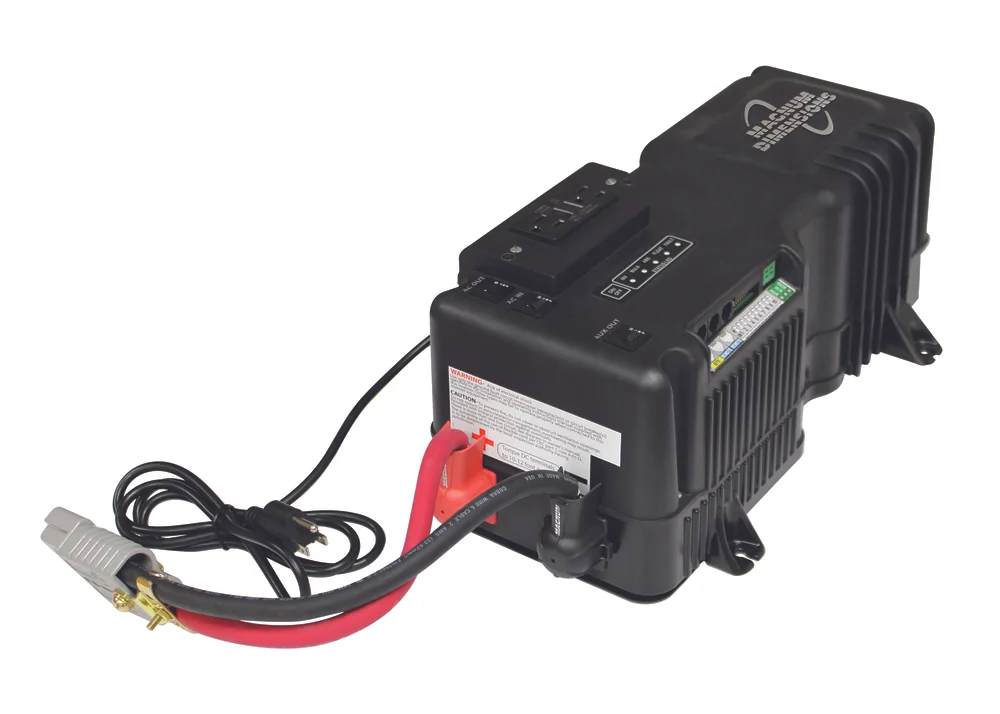

Magnum MMA1212 1200W 12VDC Modified Sine Inverter Charger

719.20

The Magnum-Dimensions MMA Series Inverter/Charger from Sensata Technologies is a modified sine wave inverter providing a cost effective solution for those with smaller power needs in mobile applications. Ideal for Emergency Vehicles, the MMA is versatile, easy-to-use, lightweight, and provides a reliable base for your energy system.

  • Waterproof Panel
  • Safe and Reliable ETL listed to UL 458
  • Standard Transfer Relay
  • Integrated Programming
  • High/Low and Overload Protected
  • Battery Temperature Sensor

Output Power: 1,200W

Peak Watts: 2,100W

Output Voltage: 120 VAC

Output Peak 18 Amps

Output Current: 10 Amps

Output Waveform: Modified Sine

Output Frequency: 60Hz

Input Voltage: 12

Continuous Output Amps: 10 Amps

Operating Temp: -4° F to 140° F

Efficiency: 95%

UL Certified: Yes

Phase: Single

Topology: Low Frequency

Input Battery Voltage Range 9-16 VDC

Owners Manual

Spec Sheet

Quantity:
Add to Cart - Free Shipping to Lower 48 States!
