Blue Seas Marine 187 Circuit Breaker - Bussmann Panel Mount

from 55.00

Typically used in DC power systems in marine applications (as a main or branch circuit breaker), truck and bus systems, RV systems, add-on protection for accessories, lift gates, etc. This unit is external ignition protected and weatherproof.

Rating: 25-150A, 48Vdc

Main Breaker Protection Interrupt Rating (5kA@ 14Vdc, 3kA@28Vdc and 1.5kA@ 48Vdc).

Operating Temperature Rating –40°F (–40°C) to 185°F (85°C)

Storage Temperature Rating –40°F (–40°C) to 260°F (125°C)

Black UL-rated 94V0 thermoset plastic body. Cover and lever are UL-rated 94V0 thermoplastic

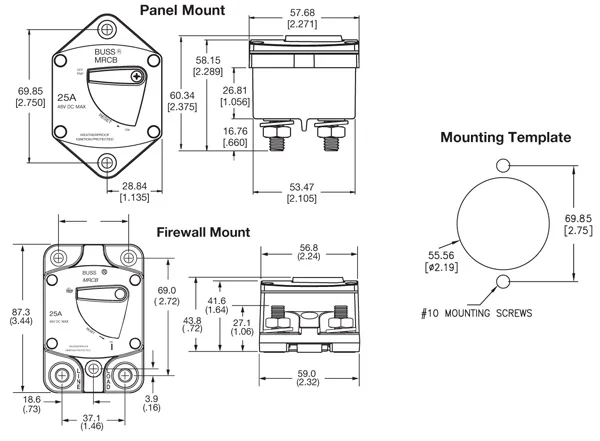

Click Here To Download Spec Sheet
