OMP Circuit Breakers (1/4") Side By Side
Side by Side 1/4" Stainless Studs

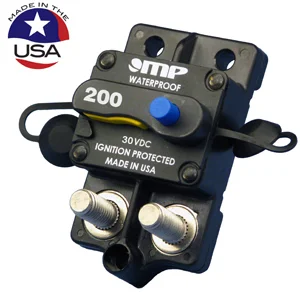

USA Made Thermal Circuit Breakers - Available in ratings from 50 to 200 Amps, the 17 Series offers a robust thermoplastic material case enclosure, designed with superior moisture sealing and built standard with STAINLESS STEEL - STUDS & SEMS NUTS. The termination stud spacing has been designed to accept standard ring terminal configurations.
The MP 17 Series is designed as a drop in replacement for existing surface and panel mountable configurations along being the BEST Choice for New-Equipment Installations.
- MARINE GRADE - MADE IN THE USA
- MFG Part# 175-S1-***-2 (*** = amps)
- Amperage Ratings from 50 to 200 Amps
- 48 VDC maximum for 50 - 150 Amp
- 30 VDC maximum for 175 - 200 Amp
- Trip-free operation
- Side by Side 1/4" Stainless Studs & Nuts
- Switchable / Manual Push-To-Trip Operation
- IP67 - Dustproof and waterproof
- Visible trip indication
- Visible trip button / circuit break button
- Ignition Protected
