Product Description

Solar Marine Supply Flex-90 high efficiency solar solar panel can curve and contour in one direction up to 20-Degrees to conform at a semi rounded and uneven surface.  This 100 watt solar panel is made with high quality monocrystalline silicon solar cells for high conversion efficiency, long term output, stability and reliability for the marine environment.

Perfect for T-Tops and Temporary Bimini installation for that long day on the water when you need to recharge your battery without the need to start your engine!

• DIMS: 36.25" x 21.25" x 0.12"  (920mm x 540mm x 3mm)
• Weight 2.75 Pounds / 1.2kg
• MC4 Connectors w/ IP65 Rated Junction
• Four stainless gromet holes
• Rigorous quality control to meet the highest international standards
• Outstanding electrical performance under high temperature and weak light environments
• Application:  Off-Grid Solar Power
• One Year limited product warranty on materials & workmanship
• 10 Year warranty on >90% power output
• CE Certified

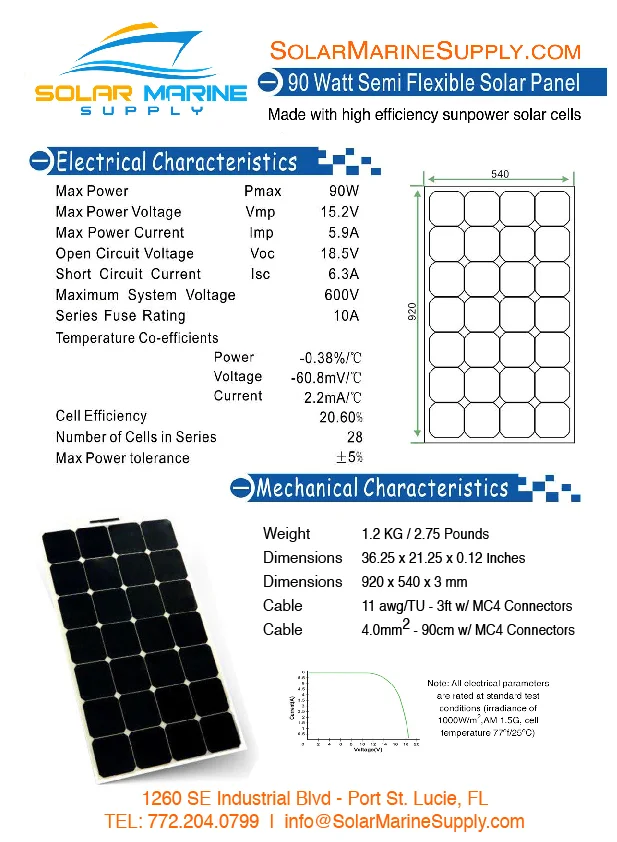

Download Solar Marine Supply 90W Flex Spec Sheet

Maximum Power Pmax 90 W (-/+10%)

Max System Voltage (IEC) 600V

Voltage at Max Power Point Vmpp 15.2 V

Current at Max Power Point Impp 5.9 A

Open Circuit Voltage Voc 18.5 V

Short Circuit Current Isc 6.3 A

Monocrystalline Silicone Cells:28

Module Efficiency20.6%
