SOLAR BOOST 2512I-HV
12V 20/25A AMP MPPT SOLAR CHARGE CONTROLLER.
Available both as low cost and full featured versions. Great for cost sensitive applications that require a quality, reliable MPPT controller capable of running 60 Cell modules. Full featured version includes LVD load control or lighting control.
Patented Maximum Power Point Tracking technology allows Solar Boost 2512i-HV and 2512iX-HV to increase charge current up to 30% or more compared to conventional charge controllers. The new higher input voltage capability of the HV version product now allows the use of higher voltage lower cost 60 cell PV modules to charge a 12 volt battery. Don’t waste your money by throwing PV power away! Get the power you paid for with a Solar Boost charge controller.
- The lower cost Solar Boost 2512i-HV provides an advanced fully automatic 3-stage charge control system to ensure the battery is properly and fully charged, resulting in enhanced battery performance with less maintenance.

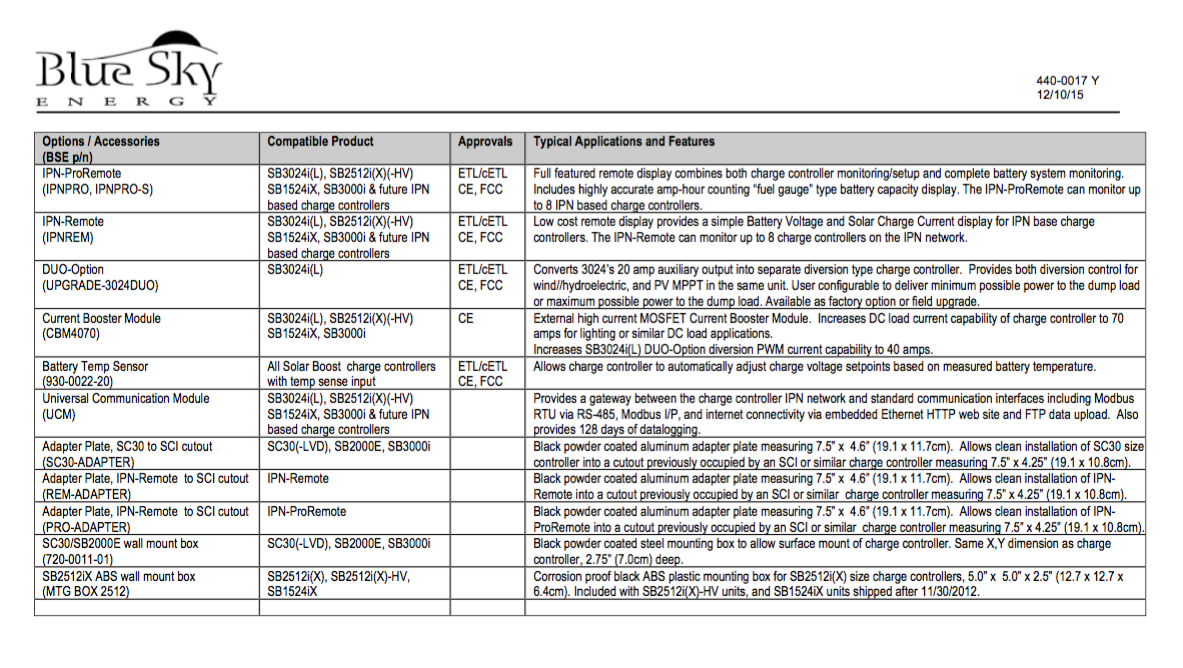

- A partial IPNTM network interface is also included to allow use of the Universal Communication Module (UCM), and IPN-Remote and IPN-ProRemote displays.
Additional features provided in the Solar Boost 2512iX-HV version include automatic equalization, battery temperature sensor input, full IPN network compatibility, and an auxiliary
output. The auxiliary output can serve as a 25 amp load controller, 25 amp lighting controller , or as a 2 amp auxiliary battery charger. The auxiliary battery charge feature is ideal for charging a separate battery such as the engine battery in an RV.
Blue Sky Energy’s advanced Integrated Power NetTM, or IPN Network, allows multiple charge controllers to communicate with each other and coordinate their activities to charge the battery as a single coordinate charging machine. The IPN network also allows networked controllers to share an optional battery temperature sensor, UCM and remote display. Complete IPN network functionality is provided within the charge controller and no additional hardware or software is required.

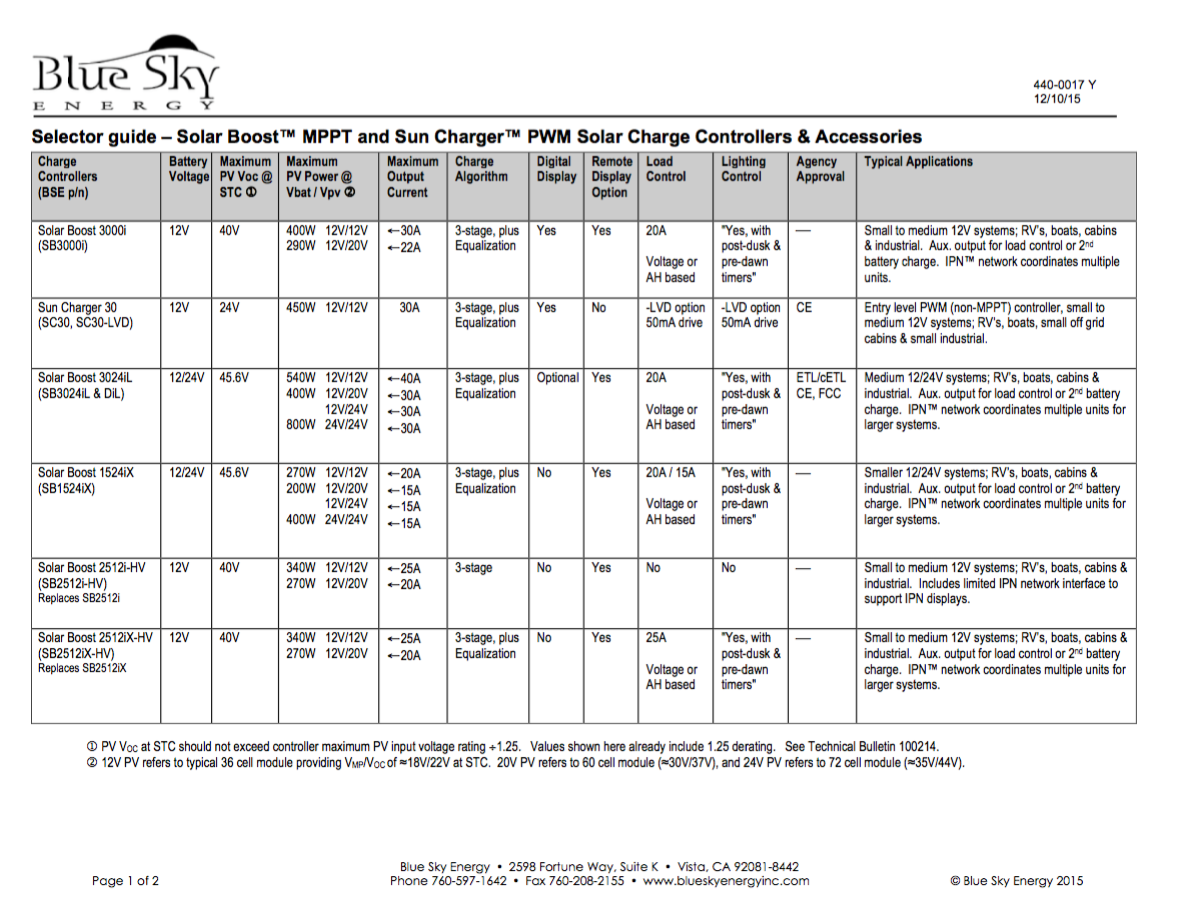

Solar Boost 2512iX-HV Data-Sheet
Technical Bulletin #100214
Purpose: How to pick solar panels for my Solar Boost
